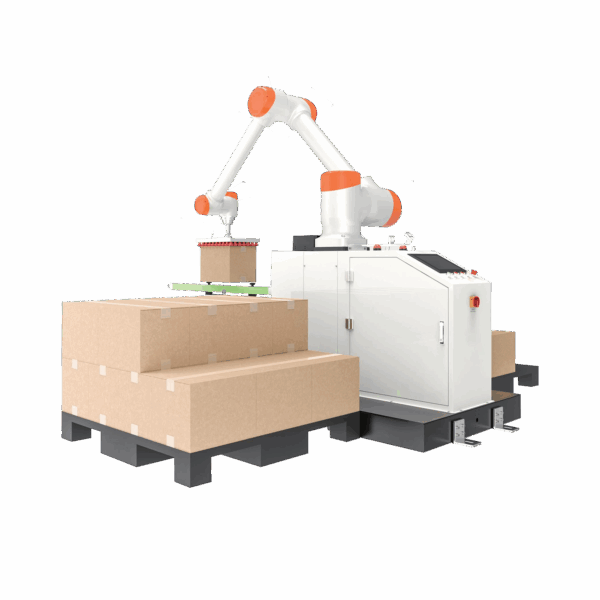

Palletizing Workstation

Palletizing Workstation

High-efficiency, precision palletizing with intelligent features tailored for modern manufacturing.

Lidar Sensor
Non-contact detection with adjustable sensing range, enabling real-time obstacle recognition and immediate stop in restricted zones for enhanced operational safety.

Safety Fence + Grating Sensor
Dual-layer safety system combining physical protection with fast-response detection, ensuring reliable operator safety and compliance with industrial standards.

Inclined Roller Conveyor
Automatically aligns boxes for accurate positioning, with adjustable height range and durable material options to support smooth and efficient material flow.

Modular Suction Device
Lightweight, space-saving design that adapts to various box types and layouts, supporting custom configurations for diverse palletizing scenarios.

High-Quality Lifting Inspection Components*
Equipped with internationally recognized brand components, ensuring stable performance and reliable box lifting across high-demand applications.

Contact Us
Category: Brand:

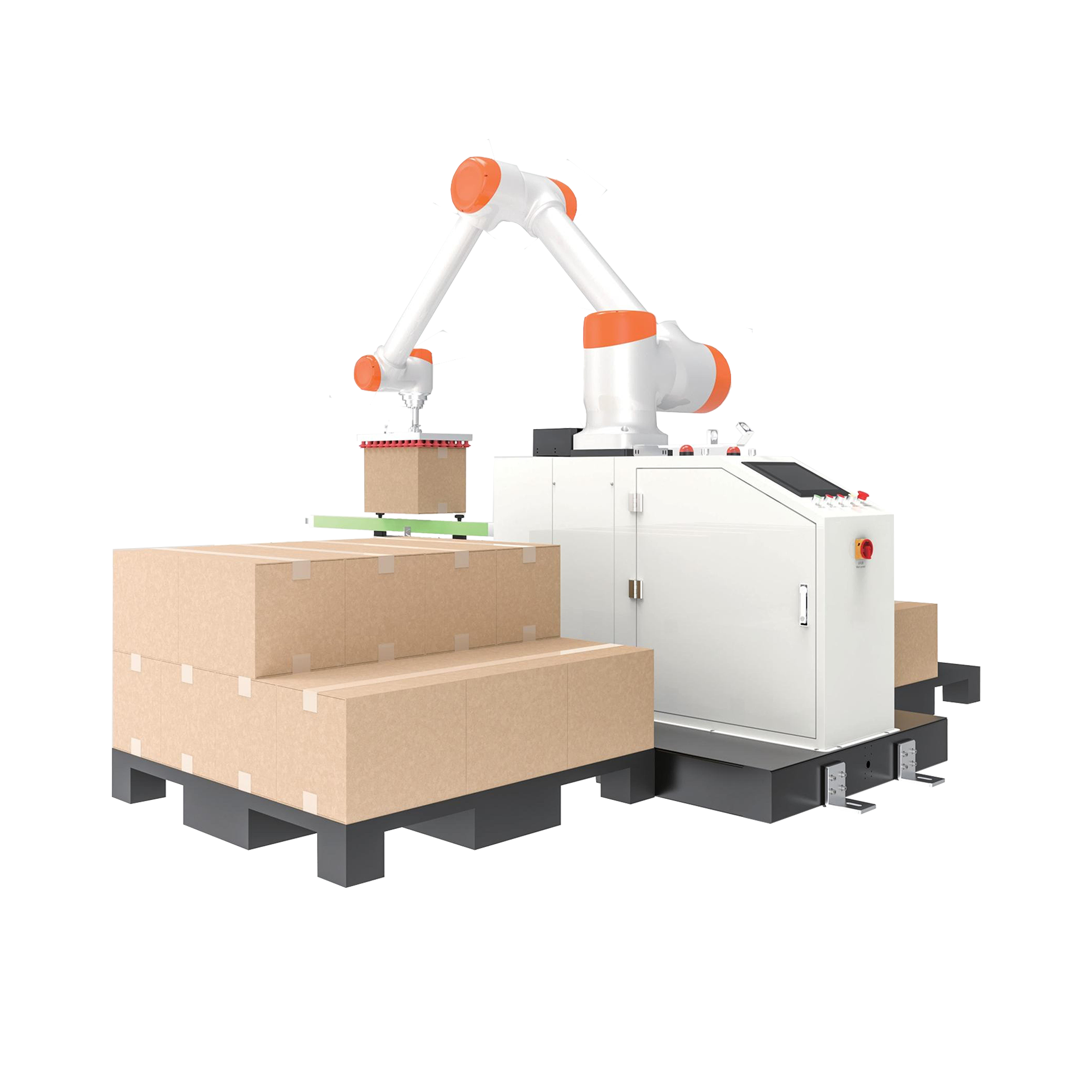

Palletization Workstation

Expansion configuration plan for collaborative palletizing workstation. Further improve the safety, reliability, convenience, and unified plan selection for palletizing.

Lidar sensor

  •  Non-contact, with flexible setting of detection distance.
  • It stops immediately when entering a danger zone.

Safety fence + grating sensor

  • Physical protection, safe and reliable.
  • With stable performance, strong anti-interference ability.
  • High -sensitivity induction, quick response.
  • Long service life.

Inclined roller conveyor

  • Automatic edge alignment of boxes.
  • Adjustable within a large height range.
  • Various material options.
  • Long service life

Modular suction device

  • Adapt to complex application scenarios
  • lightweight, with more compact space
  • Supporting non-standard customization at a more favorable price
  • Inspection of lifting boxes by international big -brand products
  • High stability.

Parameter

ModelzAM-30-GAM-30-SAM-30-HAM-40-G
Load30kg30kg30kg40kg
Working Radius1460mm1460mm1460mm1900mm
Coding HeightFixed type H1 = 1600mmLifting type H2 = 2100mmLifting type H3 = 2300mmFixed type H1 = 2000mm
Coding Speed≤ 7 pcs/min≤ 7 pcs/min≤ 7 pcs/min≤ 10 pcs/min
Repeat Positioning Accuracy± 0.04mm± 0.04mm± 0.04mm± 0.05mm
Reference Air Consumption300 – 500L/min300 – 500L/min300 – 500L/min600 – 800L/min
Communication MethodEtherCAT interface, expansion I/OEtherCAT interface, expansion I/OEtherCAT interface, expansion I/OEtherCAT interface, expansion I/O
IP RatingIP54IP54IP54IP54
Temperature Range0 - 50°C0 - 50°C0 - 50°C0 - 50°C
Maximum Power Consumption3.3 kW4 kW4 kW6.5 kW
Power SupplySingle-phase 220V/50HzSingle-phase 220V/50HzSingle-phase 220V/50HzSingle-phase 220V/50Hz
Overall Machine Weight≈ 370kg≈ 440kg≈ 390kg≈ 600kg
Floor Area1973 × 1488mm (excluding pallet and roller line)1973 × 1488mm (excluding pallet and roller line)1973 × 1488mm (excluding pallet and roller line)2034 * 1700mm (excluding pallet and roller line)
