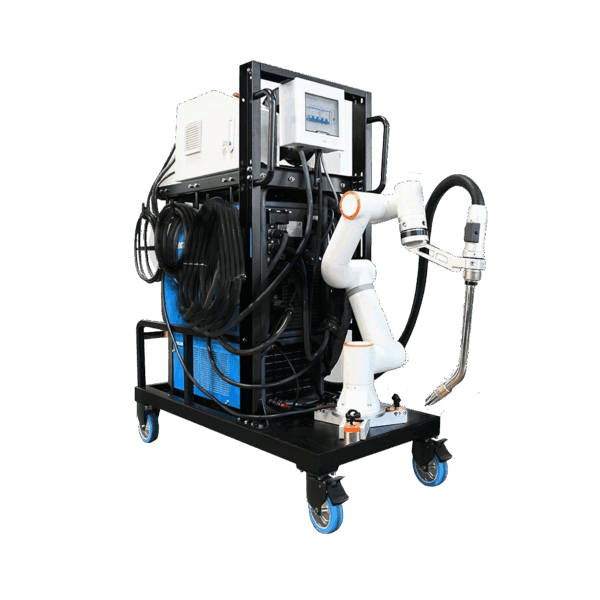

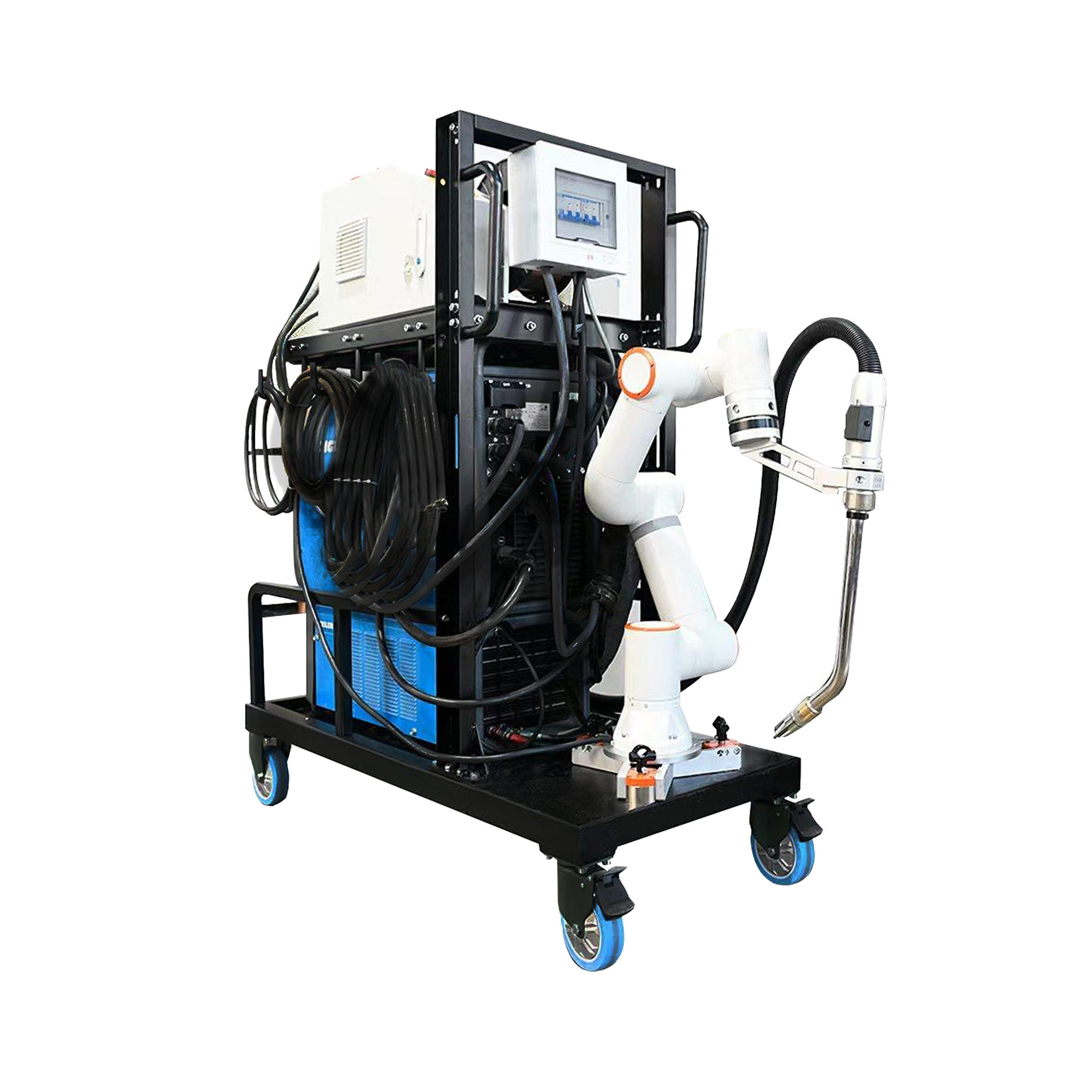

Welding Workstation

Welding Workstation

Smart, adaptable welding workstation with no-code setup and intelligent tracking capabilities.

    • No-Programming Setup
      Configure welding tasks without coding—perfect for non-technical users.

    • Drag-and-Drop Demonstration
      Guide the robot by hand and set paths with an intuitive drag-and-drop interface.

    • Vision-Guided AI Welding
      Robot can “see” and understand weld seams. It identifies and adjusts to weld seams in real time for high precision.

    • Laser Seam Tracking
      Advanced laser sensors track weld seams in real time, ensuring consistent accuracy and automatic path correction for better weld quality.

    • Multiple Swing Welding Modes
      Supports various swing patterns like sine, triangle, and zigzag for different needs.
    • Lightweight Push-Pull Welding Torch
      Weighs ≤1.1 kg, supports 20 m wire feeding, and features quick-change design for tight spaces.



Contact Us
Category: Brand: ,

Collaborative Robot Specifications​

TypeFR3FR5FR10FR20FR30
Weight15kg22kg40kg85kg85kg
Payload3kg5kg10kg20kg30kg
Reach622mm922mm1400mm1854mm1403mm
Typical TCP speed1m/s1m/s1.5m/s2m/s2m/s
Repeatability±0.02mm±0.02mm±0.05mm±0.1mm±0.1mm
Joint Range±360°±360°±360°±360°±360°
Tool I/O Power Supply24V/1.5A24V/1.5A24V/1.5A24V/1.5A24V/1.5A
IP ClassificationIP54/IP66IP54/IP66IP54/IP66IP54/IP66IP54/IP66

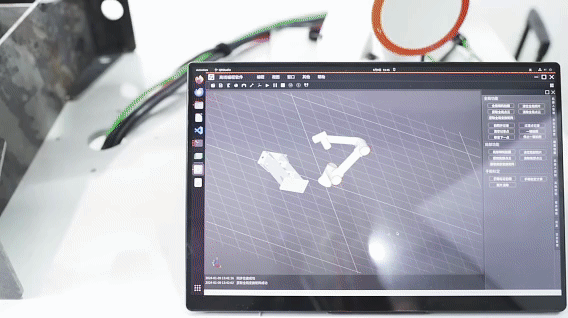

AI-Powered Vision Seam Detection

Our welding workstation features an intelligent vision system powered by advanced point cloud recognition and AI algorithms. It enables automatic seam identification and path planning—even on unmodeled parts—eliminating the need for manual programming or CAD data. This drastically reduces setup time while ensuring precision and consistency.

  • AI Seam Detection:
    Auto path planning with point cloud recognition
  • No Programming Needed:
    No CAD or manual teaching required
  • Fast Deployment:
    Reduced setup time with AI automation

Smart Welding Control Suite

Equipped with a full suite of intelligent welding functions, including multiple swing welding modes, real-time arc tracking, wire position sensing, and auto restart after arc breaks. These adaptive controls allow seamless welding of complex joints and multi-layer structures with minimal operator input, ensuring superior weld quality and process stability.

Multiple Swing Modes

Supports various swing shapes like triangle, circle, and sine wave for enhanced weld adaptability.

Real-Time Arc Tracking

Automatically compensates for groove deviations to ensure accurate and stable welds.

Smart Wire Positioning

Detects workpiece boundaries using voltage signals for precise weld path alignment.

Welding Interruption Recovery

Automatically resumes interrupted welds with overlap to maintain quality and continuity.

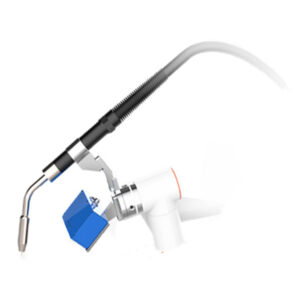

Lightweight Push-Pull Torch for Long-Distance Welding

  • Lightweight Design
    ≤1.1 kg torch enables smoother, more flexible robot movement

  • Push-Pull Wire Feeding
    Ensures stable wire delivery over distances up to 20 meters

  • Quick Torch Replacement
    Goose-neck design allows fast, tool-free nozzle changes

Application
